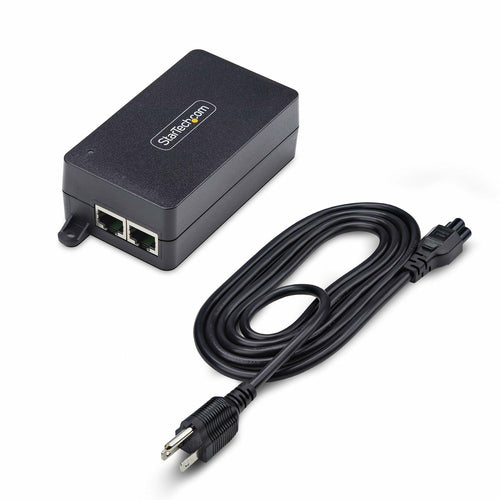

StarTech.com 1-Port Gigabit PoE+ Injector, 10M/100M/1G Ethernet, PoE/PoE+ (802.3af/802.3at), 30W Power Budget, Wall Mountable, Unmanaged Inline Power Over Ethernet - TAA

SKU#: AF211C-POE-INJECTOR  | UPC#: 0065030905169

$63.54
$63.54 $63.54
En solde Épuisé
Expédition calculée lors du paiement.
Plus que 1 unités disponibles
Paiement sécurisé avec
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

Voir les détails du produit
  • Aperçu
  • À propos de ce produit

StarTech.com 1-Port Gigabit PoE+ Injector, 10M/100M/1G Ethernet, PoE/PoE+ (802.3af/802.3at), 30W Power Budget, Wall Mountable, Unmanaged - 1-Port multi-speed PoE+ injector - Unmanaged inline injector supports PoE/PoE+ (802.3af/802.3at) up to 30 Watts - Multiple speed PoE plus injector (10/100Mbps and 1Gbps) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - Wall Mountable

Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector

This 1-port multi-speed PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, and 1Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).

Versatile PoE Injector

Single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

StarTech.com 1-Port Gigabit PoE+ Injector, 10M/100M/1G Ethernet, PoE/PoE+ (802.3af/802.3at), 30W Power Budget, Wall Mountable, Unmanaged Inline Power Over Ethernet - TAA
Network
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X
Yes
Cable types supported
Cat5, Cat5e, Cat6, Cat6a
Web-based management
No
Chipset
Monolithic Power Systems - MP3924
Features
Product colour
Black
Wall mountable
Yes
Maximum operating distance
100 m
LED indicators
Power
Jumbo frames support
Yes
Jumbo frames
9000
Auto-negotiation
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
RJ-45 input ports
1
RJ-45 output ports
1
Power
AC adapter input voltage
100 - 240 V
Input current
2.5 A
AC adapter output voltage
54 V
Output current
3.3 A
Total Power over Ethernet (PoE) budget
30 W
Power plug type
Type M
Certificates
Compliance certificates
RoHS, UL
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating temperature (T-T)
-10 - 70 °F
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
58 mm
Depth
100 mm
Height
33 mm
Weight
100 g
Packaging content
AC adapter included
Yes
Power cord included
Yes
Quick installation guide
Yes
Packaging data
Package width
212 mm
Package depth
125 mm
Package height
52 mm
Package weight
424.5 g
Logistics data
Master (outer) case width
524 mm
Master (outer) case length
290 mm
Master (outer) case height
464 mm
Products per master (outer) case
40 pc(s)
