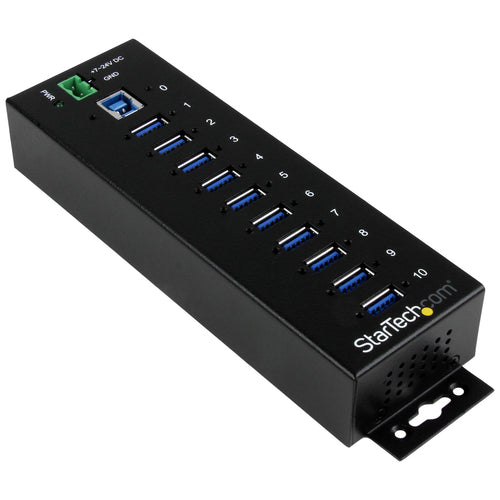

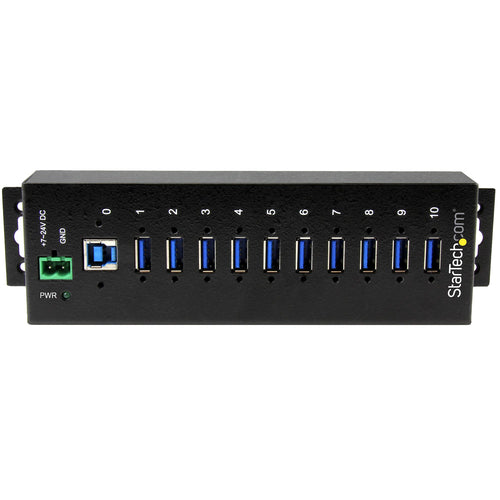

StarTech.com 10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub

SKU#: ST1030USBM  | UPC#: 0065030863001

Prix régulier $257.26
Prix soldé $257.26 Prix régulier $257.26
En solde Épuisé
Expédition calculée lors du paiement.
Plus que 5 unités disponibles
Paiement sécurisé avec Méthodes de paiement
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

Voir les détails du produit

StarTech.com 10 Port Industrial USB 3.0 Hub - ESD and Surge Protection - DIN Rail or Surface-Mountable Metal Housing - Add ten USB 3.0 (5Gbps) ports with this DIN rail or surface-mountable metal hub - 15kV ESD & 350W Surge Protection - DIN Rail / Wall-Mountable USB Hub - Rugged Housing - 10 port SuperSpeed USB3 Hub w/ terminal block power & wide operating temperature

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need it Most

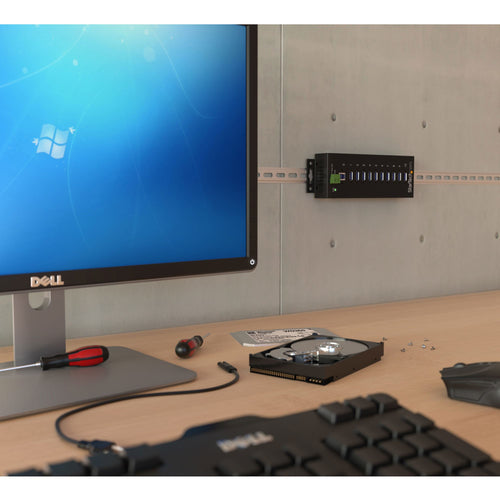

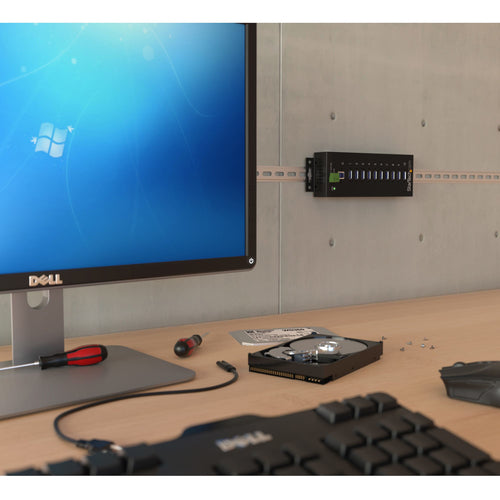

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works With Your Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

StarTech.com 10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
10
Ports quantity
10
Card reader integrated
No
Terminal block port
Yes
Features
Data transfer rate
5000 Mbit/s
Product colour
Black
Housing material
Steel
Surge protection
Yes
LED indicators
Power
Cable length
2.032 m
Certification
RoHS, CE, FCC, TAA, REACH
Power
Input voltage
7 - 24 V
Weight & dimensions
Width
56 mm
Depth
198 mm
Height
31 mm
Weight
357 g
Packaging data
Package width
244 mm
Package depth
169 mm
Package height
57 mm
Package weight
600 g

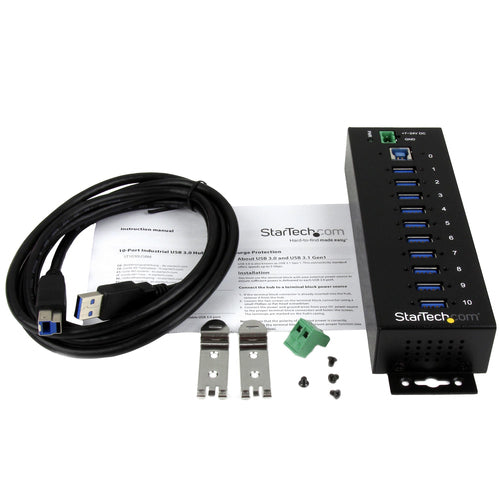

Packaging content
Cables included
USB
Manual
Yes
Terminal block included
Yes
DIN rail kit included
Yes
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Mean time between failures (MTBF)
119388 h
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
530 mm
Master (outer) case height
335 mm
Products per master (outer) case
25 pc(s)
Harmonized System (HS) code
84719000
Other features
Chipset
Genesys Logic - GL3520
