StarTech.com VGA Video Extender over Cat 5 with Audio - TAA

SKU#: ST122UTPA  | UPC#: 0065030811408

$202.94
$202.94 $202.94
En solde Épuisé
Expédition calculée lors du paiement.
Plus que 3 unités disponibles
Paiement sécurisé avec
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

Voir les détails du produit
  • Aperçu
  • À propos de ce produit

StarTech.com VGA Video Extender over Cat 5 with Audio - Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable - vga extender - vga video extender over cat5 - vga monitor extender - vga over cat5 - vga over utp

Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable

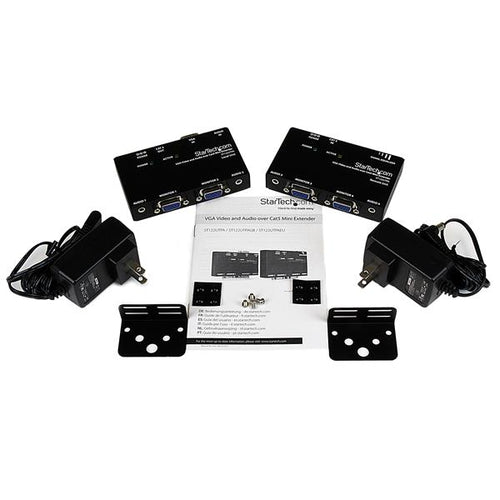

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

StarTech.com VGA Video Extender over Cat 5 with Audio - TAA
Features
Type
AV transmitter & receiver
Cable types supported
Cat5e, Cat6
Maximum transfer distance
150 m
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
Material
Aluminium
Daisy chain
No
Product colour
Black
Certification
CE, FCC
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
VGA (D-Sub) input ports
2
VGA (D-Sub) output ports
2
Audio input
2 x 3.5 mm
Audio output
2 x 3.5 mm
DC-in jack
Yes
Power
Operating voltage
12 V
Output current
0.5 A
Power consumption (typical)
6 W
External power adapter
Yes
Weight & dimensions
Receiver dimensions (WxDxH)
83 x 60 x 20 mm
Receiver weight
181 g
Transmitter dimensions (WxDxH)
83 x 60 x 20 mm
Transmitter weight
181 g
Packaging data
Package dimensions (WxDxH)
92 x 242 x 188 mm
Package width
186 mm
Package depth
242 mm
Package height
92 mm
Package weight
1.2 kg
Packaging content
AC adapter included
Yes
Manual
Yes
Mounting brackets included
Yes
Technical details
Audio support
Yes
Compliance certificates
RoHS
Logistics data
Master (outer) case width
410 mm
Master (outer) case length
508 mm
Master (outer) case height
322 mm
Products per master (outer) case
12 pc(s)
