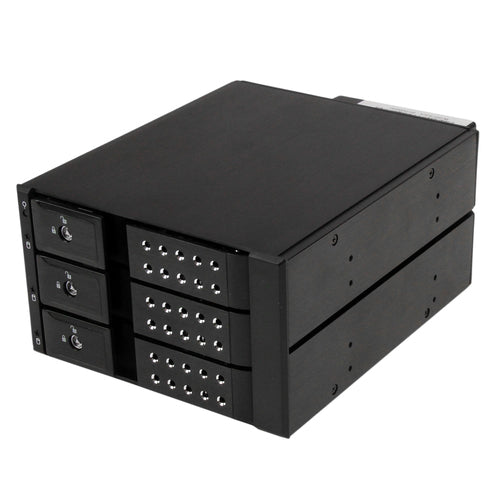

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD

SKU#: HSB3SATSASBA  | UPC#: 0065030855297

$131.19
$131.19 $0.00
Sale Sold out
Shipping calculated at checkout.
Only 2 units left
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Easily connect and hot swap up to three 3.5"" SATA/SAS hard drives from two 5.25"" bays - SATA Backplane - Hot Swap Bay - Trayless SATA Mobile Rack Backplane - SATA Aluminum Mobile Rack - 3 Drive Mobile Back Plane - 6 Gbps - Key Lock - 70mm Fan

Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
Storage
Storage drives installed
No
Installed storage drive type
No
Total installed storage capacity
0 TB
Supported storage drive types
HDD
Number of storage drives supported
3
Maximum supported storage capacity
12 TB
Storage drive interface
Serial ATA, Serial ATA II, Serial ATA III
Storage drive size
3.5"
Data transfer rate
6 Gbit/s
Hot-swap drive bays
Yes
Ports & interfaces
Host ports
3
SATA host port
Yes
Number of SATA power connectors
2
SATA power connector type
SATA 15-pin
Design
Internal
No
Product colour
Black
LED indicators
Activity, Power
Number of fans
1 fan(s)
Performance
Backplanes support
Yes
Weight & dimensions
Width
145 mm
Depth
194.1 mm
Height
110 mm
Weight
1.2 kg
Packaging data
Package width
179 mm
Package depth
253 mm
Package height
123 mm
Package weight
1.2 kg
Packaging content
Cables included
SATA
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Operating relative humidity (H-H)
5 - 85%
Storage temperature (T-T)
-20 - 60 °C
Other features
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
8 pc(s)
Master (outer) case length
523 mm
Master (outer) case width
386 mm
Master (outer) case height
290 mm
Harmonized System (HS) code
84717020
