• Kingston Technology 32GB DDR5 6400MT/s ECC Registered DIMM
1 1

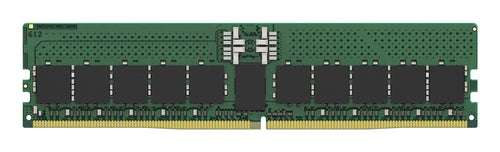

Kingston Technology 32GB DDR5 6400MT/s ECC Registered DIMM

SKU#: KSM64R52BD8-32HA  | UPC#: 0740617349238

$1,487.02
$1,487.02 $0.00
Sale Sold out
Shipping calculated at checkout.
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

Kingston RAM Module - For Server, Motherboard - 32 GB - DDR5-6400/PC5-51200 DDR5 SDRAM - 6400 MHz Dual-rank Memory - CL52 - 1.10 V - ECC - Registered - 288-pin - DIMM

Kingston's KSM64R52BD8-32MD is a 4G x 80-bit (32GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Kingston Technology 32GB DDR5 6400MT/s ECC Registered DIMM
Features
Buffered memory type
Registered (buffered)
On-Die ECC
No
CAS latency
52
Internal memory
32 GB
Memory layout (modules x size)
1 x 32 GB
Internal memory type
DDR5
Memory data transfer rate
6400 MT/s
Component for
Server
Memory form factor
288-pin DIMM
ECC
Yes
Memory ranking
2
Memory voltage
1.1 V
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
Row Precharge Time (TRP)
16
SPD profile
Yes
Programming power voltage (VPP)
1.8 V
Lead plating
Gold
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Sustainability
Doesn't contain
Halogen
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Other features
Chips organisation
2Rx8
