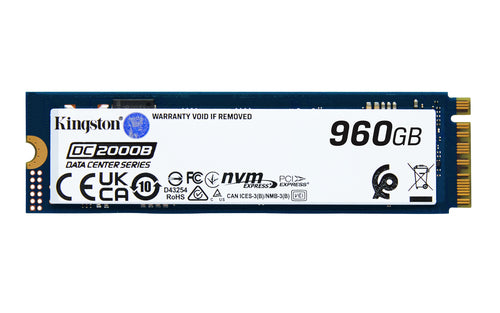

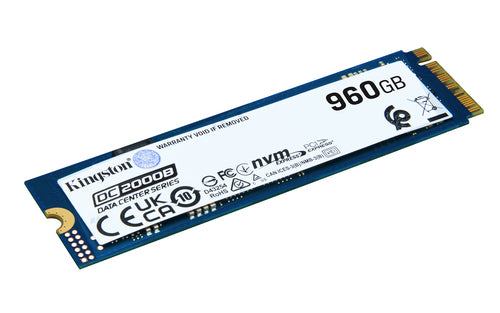

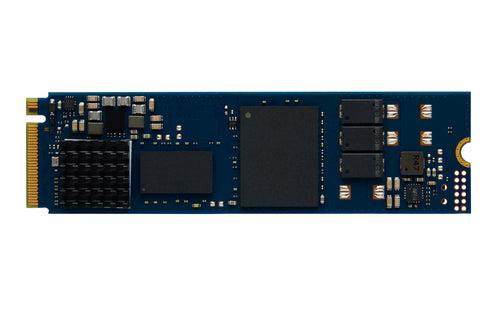

Kingston Technology 960G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD

SKU#: SEDC2000BM8/960G  | UPC#: 0740617345186

Regular price $1,072.89
Sale price $1,072.89 Regular price $0.00
Sale Sold out
Shipping calculated at checkout.
Only 9 units left
Secure checkout with Payment methods
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details

Kingston DC2000B 960 GB Solid State Drive - M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4) - Server, Data Center Device Supported - 0.4 DWPD - 700.80 TB TBW

Enterprise class for server applications
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.

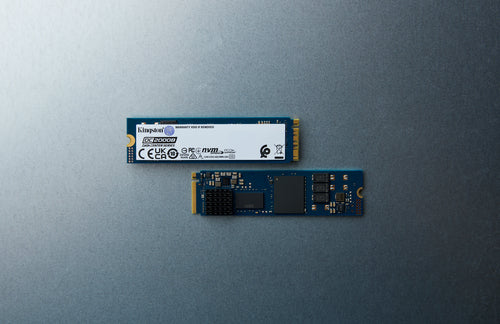

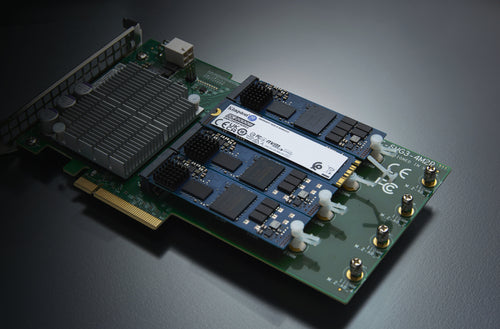

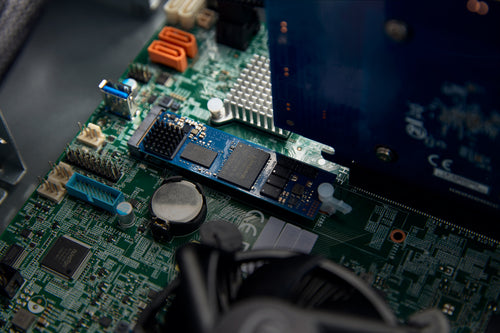

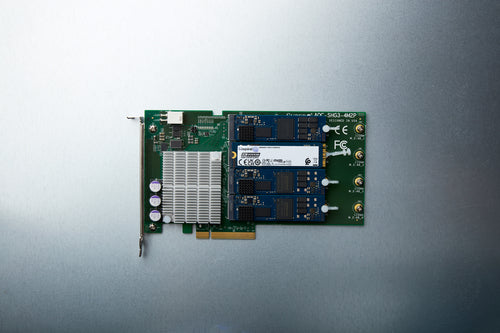

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."

PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.

On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.

Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.

Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.

Kingston Technology 960G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
Features
SSD capacity
960 GB
SSD form factor
M.2
Interface
PCI Express 4.0
NVMe
Yes
Memory type
3D TLC
Component for
Server
M.2 SSD size
2280 (22 x 80 mm)
Read speed
7000 MB/s
Write speed
1300 MB/s
Random read (4KB)
540000 IOPS
Random write (4KB)
47000 IOPS
Read latency
70 µs
Write latency
20 µs
PCI Express interface data lanes
x4
S.M.A.R.T. support
Yes
H/W PLP function
Yes
Mean time between failures (MTBF)
2000000 h
Drive writes per day (DWPD)
0.4
TBW rating
700
Power
Power consumption (read)
3.36 W
Power consumption (write)
7.8 W
Average power consumption (read)
3.26 W
Average power consumption (write)
7.36 W
Weight & dimensions
Width
22 mm
Depth
80 mm
Height
8.9 mm
Weight
11 g

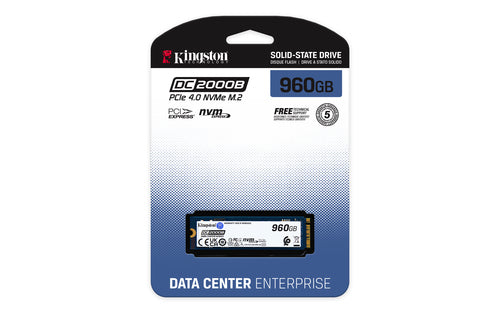

Packaging data
Package width
129.5 mm
Package depth
14.2 mm
Package height
184.2 mm
Package weight
35.77 g
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Non-operating vibration
20 G
Other features
Cooling type
Heatsink
Logistics data
Country of origin
China, Taiwan
Master (outer) case width
135.9 mm
Master (outer) case length
203.2 mm
Master (outer) case height
69.8 mm
Master (outer) case gross weight
292.62 g
Products per master (outer) case
6 pc(s)
