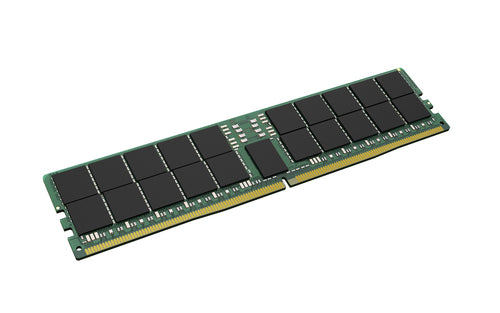

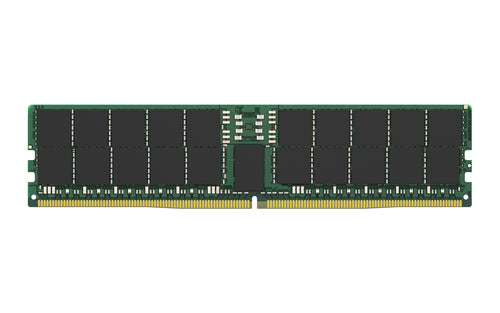

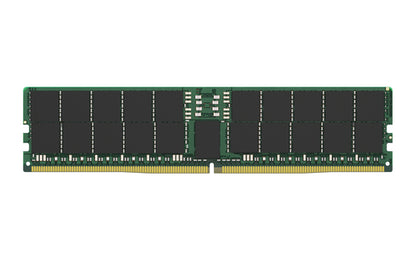

• Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s 288-pin DIMM ECC
  • Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s 288-pin DIMM ECC
1 2

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s 288-pin DIMM ECC

SKU#: KSM56R46BD4PMI-96MBI  | UPC#: 0740617340266

$4,604.16
$4,604.16 $0.00
Sale Sold out
Shipping calculated at checkout.
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

Kingston 96GB DDR5 SDRAM Memory Module - For Motherboard - 96 GB - DDR5-5600/PC5-44800 DDR5 SDRAM - 5600 MHz Dual-rank Memory - CL46 - 1.10 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96 GB DDR5 5600 MT/s 288-pin DIMM ECC
Features
On-Die ECC
Yes
CAS latency
46
Internal memory
96 GB
Memory layout (modules x size)
1 x 96 GB
Internal memory type
DDR5
Memory data transfer rate
5600 MT/s
Component for
PC/Server
Memory form factor
288-pin DIMM
ECC
Yes
Buffered memory type
Registered (buffered)
Memory ranking
2
Memory voltage
1.1 V
Module configuration
12288M x 80
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
SPD profile
Yes
Programming power voltage (VPP)
1.8 V
Lead plating
Gold
Backlight
No
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C
Sustainability
Sustainability compliance
Yes
Compliance certificates
RoHS
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Other features
Doesn't contain
Halogen
