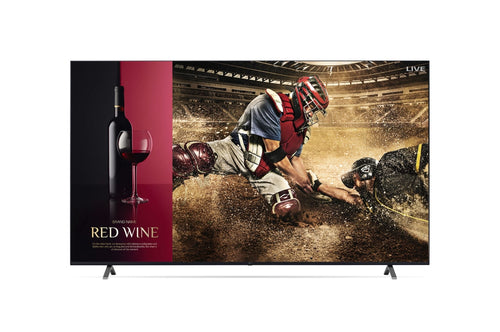

LG 86UR340C9UD Signage Display Digital signage flat panel 2.18 m (86") LED 330 cd/m² 4K Ultra HD Blue, Navy WebOS

SKU#: 86UR340C9UD  | UPC#: 0195174023754

Regular price $2,867.00
Sale price $2,867.00 Regular price $0.00
Sale Sold out
Shipping calculated at checkout.
Only 7 units left
Secure checkout with Payment methods
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details

LG Commercial Lite 86UR340C9UD 86"" Smart LED-LCD TV - 4K UHDTV - High Dynamic Range (HDR) - Navy Blue - HLG - Direct LED Backlight - 3840 x 2160 Resolution

LG UHD Signage for Live TV & Promotion

Space-fitting Slim Design
This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ashed blue colour improves the décor of the space where the product is installed.

* LG Conventional' refers to LG US340C series.
The TV is screening greeting messages with images.

Welcome Screen
The UR340C series allows for a greater variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.

It only turns on when there is signal and turns off when there is not any signal in DPM Mode.

Display Power Management Support
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.
The UR340C series can help you create your own schedule.

On/Off Time Setting
Create your own time scheduler of your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.
Setting data of the display can be stored on USB and transmitted to other displays.

USB Data Cloning
USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.

* USB is not provided by LG. FAT32 or NTFS formatting is recommended.
This is one of meeting room with the signage and one of AV control system which helps users control the UR340C series.

Crestron Connected Certified
The UR340C series has been certified by Crestron Connected®, resulting in seamless integration and automated control* in the meeting room, boosting business management efficiency.
* Network based control.

Conveniently manage a variety of displays using LG SuperSign Control.

Quick & Easy Signage Control with LG SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
* LG SuperSign Control needs to be purchased separately.

LG 86UR340C9UD Signage Display Digital signage flat panel 2.18 m (86") LED 330 cd/m² 4K Ultra HD Blue, Navy WebOS
Display
Display diagonal
2.18 m (86")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
330 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Response time
5 ms
Panel life
30000 h
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 Pro (HDR10 Pro)
Native refresh rate
120 Hz
Ports & interfaces
HDMI ports quantity
3
HDMI version
2.0
HDMI input ports quantity
3
USB port
Yes
USB ports quantity
1
USB version
2.0
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
RS-232C
Yes
Infrared data port
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Speaker impedance
8 Ω
Design
Product design
Digital signage flat panel
Product colour
Blue, Navy
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel width (bottom)
199 cm
Bezel width (side)
159 cm
Bezel width (top)
159 cm
Performance
Analog signal format system
NTSC
Digital signal format system
ATSC
Browsing
Yes
Hybrid Log-Gamma (HLG)
Yes
High Dynamic Range 10 (HDR10)
Yes
Power
Power consumption (typical)
313 W
Power consumption (standby)
0.5 W
Input voltage
120 V
AC input voltage
120 V
AC input frequency
50 - 60 Hz
Computer system
Operating system installed
WebOS
Weight & dimensions
Width
1927 mm
Depth
599 mm
Height
1104 mm
Weight
45.2 kg
Width (with stand)
1927 mm
Depth (with stand)
362 mm
Height (with stand)
1167 mm
Weight (with stand)
45.9 kg
Packaging data
Package width
2115 mm
Package depth
228 mm
Package height
1215 mm
Package weight
58.4 kg
Packaging content
Remote control included
Yes
Remote control type
L-Con
Cables included
AC, RS-232
Network
Ethernet LAN
Yes
Technical details
Real Time Clock (RTC)
Yes
