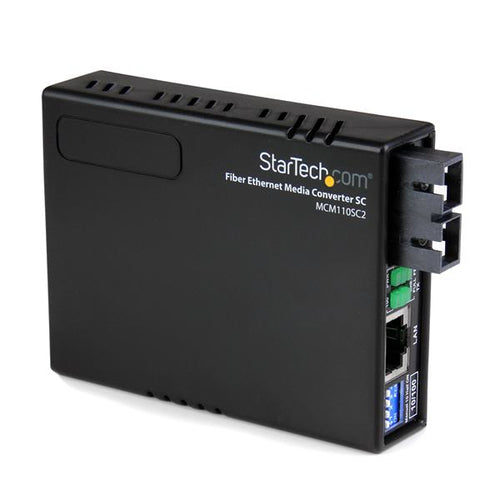

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km

SKU#: MCM110SC2  | UPC#: 0065030835626

Regular price $111.71
Sale price $111.71 Regular price $0.00
Sale Sold out
Shipping calculated at checkout.
Only 1 units left
Secure checkout with Payment methods
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km - Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Network
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
10,100 Mbit/s
Jumbo frames support
Yes
Jumbo frames
9000
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Duplex system
Full, Half
Performance
Maximum transfer distance
2000 m
Wavelength
1310 nm
Wavelength-division multiplexing (WDM)
No
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
65000 h
Features
Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Plastic
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC
DC-in jack
Yes
Power
Input voltage
115 V
Output voltage
12 V
Output current
0.2 A
Power over Ethernet (PoE)
No
Power plug type
Type M
Weight & dimensions
Width
75 mm
Depth
95 mm
Height
20 mm
Weight
90.5 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging content
AC adapter included
Yes
Manual
Yes
Packaging data
Package width
63 mm
Package depth
148 mm
Package height
145 mm
Package weight
400 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
