StarTech.com 4-Port HDMI Splitter - 4K 60Hz

SKU#: ST124HD202  | UPC#: 0065030880398

Regular price $110.69
Sale price $110.69 Regular price $0.00
Sale Sold out
Shipping calculated at checkout.
In stock (18 units), ready to be shipped
Secure checkout with Payment methods
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details

StarTech.com 4 Port HDMI Splitter - 4K 60Hz - 1x4 Way HDMI 2.0 Splitter - HDR - ST124HD203 - Displays the same image with sound on 4 screens - Splits an HDMI video signal up 4K 60Hz - 4:4:4 chroma; up to 18Gbps (HDMI 2.0b) - HDR; HDCP 2.2 to HDCP 1.4 conversion; 7.1 surround sound audio - Passes EDID between video source and display (port 1)

1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

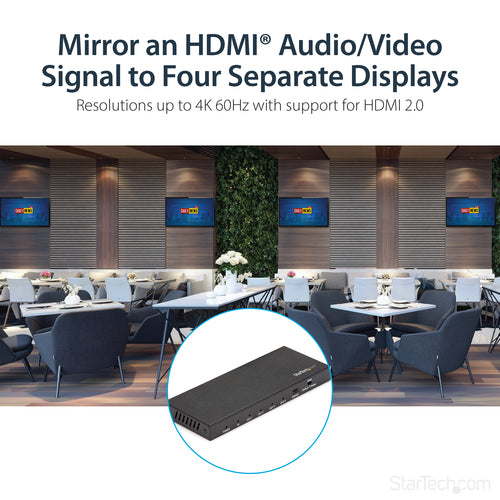

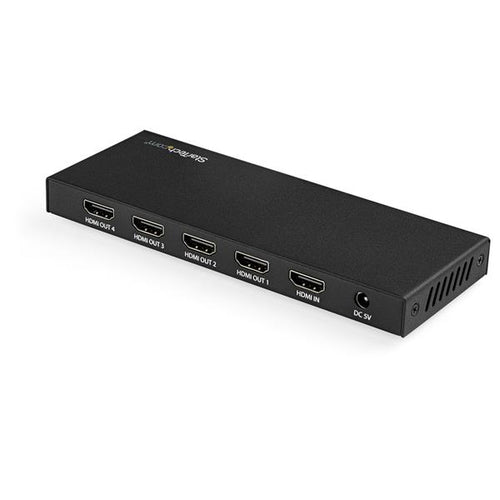

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

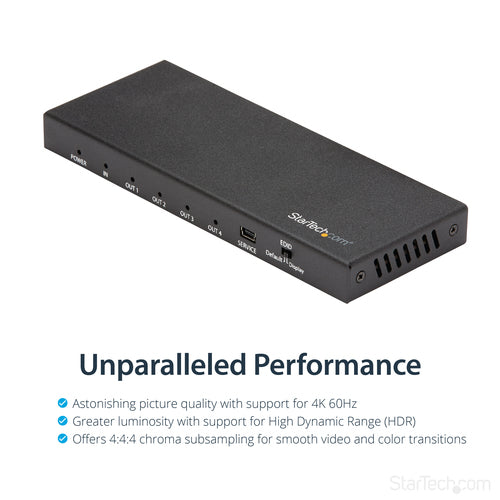

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

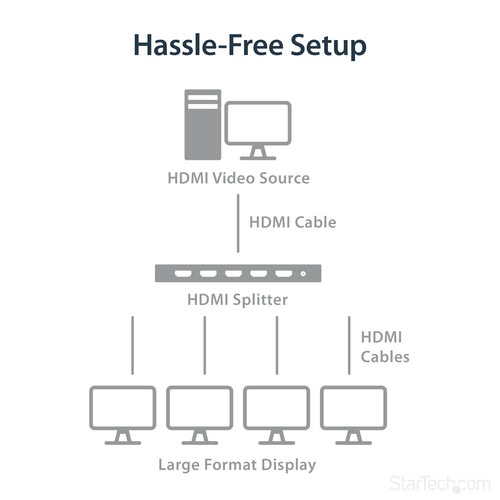

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

StarTech.com 4-Port HDMI Splitter - 4K 60Hz
Ports & interfaces
Video port type
HDMI
Video out
4x HDMI
HDMI version
2.0
Video ports quantity
4
Features
Product colour
Black
Maximum resolution
3840 x 2160 pixels
Full HD
Yes
HD type
4K Ultra HD
Maximum refresh rate
60 Hz
HDCP
Yes
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

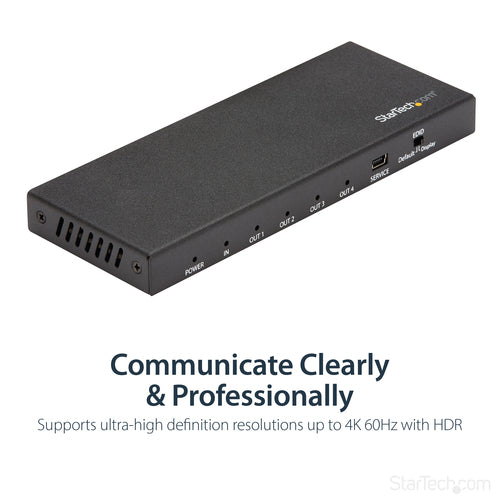

Power LED
Yes
Plug and Play
Yes
Supported video modes
720p, 1080p
LED indicators
Yes
Certification
CE, FCC, REACH
Power
AC input voltage
100 - 240 V
Input current
1 A
Output voltage
5 V
Output current
0.2 A
Power consumption (typical)
5 W

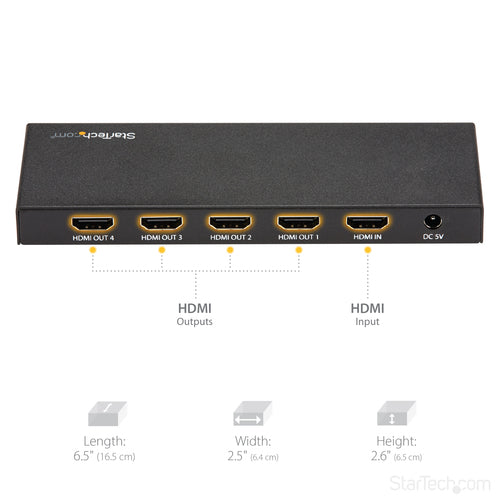

Weight & dimensions
Width
64 mm
Depth
165 mm
Height
65 mm
Weight
506 g
Packaging data
Package width
148 mm
Package depth
212 mm
Package height
55 mm

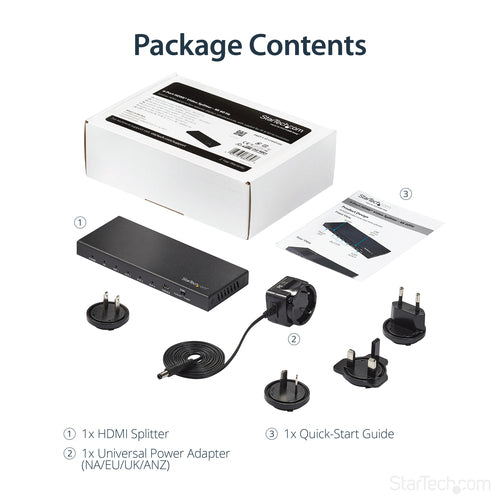

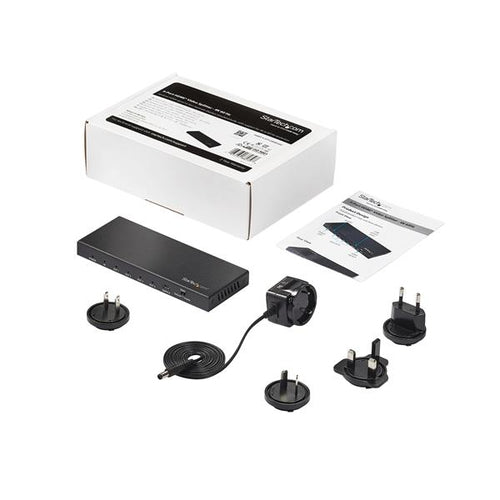

Packaging content
User guide
Yes
Included power plug types
AU, EU, NA, UK
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Technical details
Maximum cable length
5 m
Supported audio channels
7.1
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
