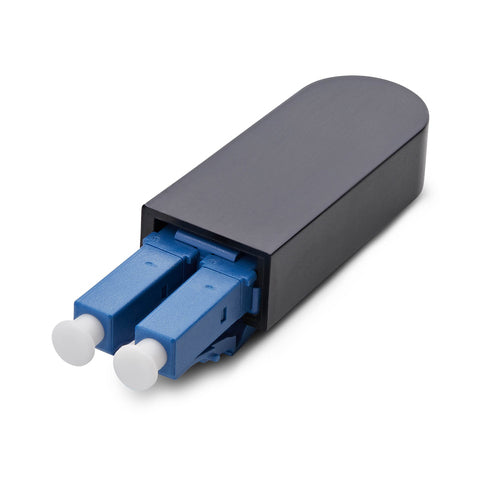

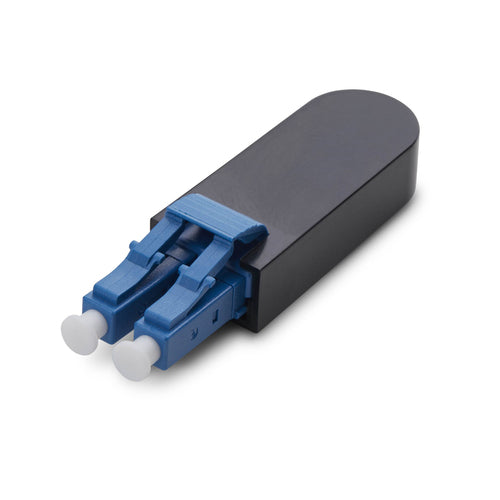

StarTech.com LOOPBACKLCLC00DB network cable tester Fiber cable tester Black, Blue

SKU#: LOOPBACKLCLC00DB  | UPC#: 65030923538

$72.76
$72.76 $0.00
Sale Sold out
Shipping calculated at checkout.
In stock (20 units), ready to be shipped
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview

StarTech LC Loopback Plug, Single Mode 9/125 LC Fiber Optic Loopback Adapter, LC/UPC Connector Loopback Test Plug - 0dB - LC/UPC Single Mode fiber loopback test plug; Low-loss 0dB for precise baseline testing; For Single Mode OS1/OS2; Insertion loss below 0.3dB; Repeatability within 0.2dB; Rated for 1,000 test cycles; Compact ABS housing; IEC and RoHS compliant

Features
Product type
Fiber cable tester
Test type
Loopback testing
Supported connectors
LC
Built-in display
No
Product colour
Black, Blue
Housing material
Acrylonitrile butadiene styrene (ABS)
Fiber mode structure
Single-mode
Fibre optic type
OS1/OS2
Connector gender
Male
Certificates
Compliance certificates
CE, RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 75 °C
Weight & dimensions
Width
14.2 mm
Depth
50.5 mm
Height
8.5 mm
Weight
4 g
Packaging data
Package width
120 mm
Package depth
90 mm
Package height
12 mm
Package weight
6 g
Logistics data
Master (outer) case width
430 mm
Master (outer) case length
335 mm
Master (outer) case height
400 mm
Products per master (outer) case
1000 pc(s)
