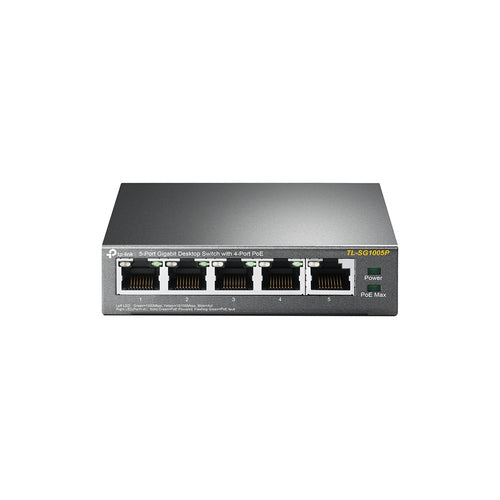

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

SKU#: TL-SG1005P  | UPC#: 0845973083212

$59.99
$59.99 $0.00
Sale Sold out
Shipping calculated at checkout.
In stock (119 units), ready to be shipped
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 4.30 W Power Consumption - 65 W PoE Budget - Twisted Pair - PoE Ports - Desktop - 3 Year Limited Warranty

PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5
Network
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Data transmission
Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Security
IGMP snooping
Yes
Design
Rack mounting
No
Stackable
No
Product colour
Black
LED indicators
Yes
Performance
Maximum cable length
100 m
Fanless
Yes
Power
Power source
DC/PoE
Power supply included
Yes
DC input voltage
48 V
Input current
1.25 A
Power consumption (max)
64.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
56 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
219.87 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging content
User guide
Yes
Packaging data
AC adapter included
Yes
Package type
Box
Package width
131 mm
Package depth
196 mm
Package height
121 mm
Package weight
800 g
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code
85176990
