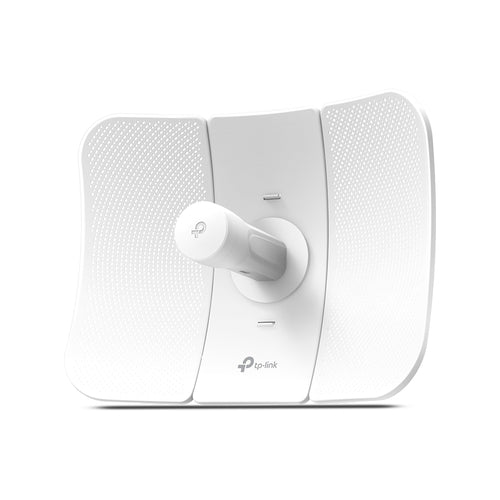

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi

SKU#: CPE710  | UPC#: 0845973089702

$89.99
$89.99 $0.00
Sale Sold out
Shipping calculated at checkout.
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

TP-Link CPE710 IEEE 802.11a/n/ac 867 Mbit/s Wireless Bridge - 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Gigabit Ethernet - Pole-mountable

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Performance
Frequency band
5.15 - 5.85 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Gain
23 dBi
Horizontal beam width
9°
Vertical beam width
7°
Built-in processor
Yes
Processor frequency
750 MHz
Internal memory
128 MB
Flash memory
16 MB
Antenna gain level (max)
23 dBi
Wi-Fi standards
802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
Antenna type
Directional antenna
Antenna connector type
PoE/LAN
Product colour
White
Housing material
Plastic
International Protection (IP) code
IP65
LED indicators
Power
Power
Power source type
PoE
Input voltage
24 V
Certificates
Certification
CE, FCC, RoHS, IC
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
366 mm
Depth
280 mm
Height
207 mm
Packaging data
Package type
Box
Packaging content
Cables included
AC
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
85176990
