• TP-Link Gigabit SFP Media Converter
1 1

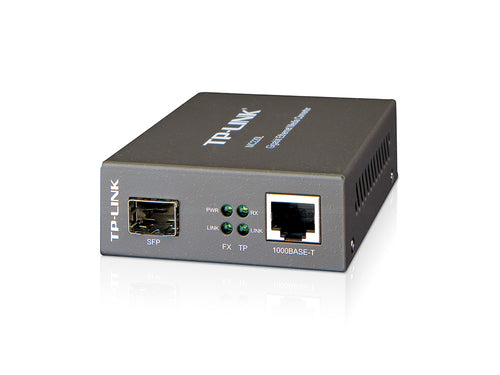

TP-Link Gigabit SFP Media Converter

SKU#: MC220L  | UPC#: 0845973030476

$25.99
$25.99 $0.00
Sale Sold out
Shipping calculated at checkout.
In stock (30 units), ready to be shipped
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

TP-Link MC220L Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - Gigabit Ethernet - 1000Base-T - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Adapter - External

- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

TP-Link Gigabit SFP Media Converter
Network
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
1000 Mbit/s
Auto MDI/MDI-X
Yes
Cabling technology
UTP 5e, 5
Performance
Maximum transfer distance
10000 m
Fiber mode structure
Multi-mode, Single-mode
Features
Internal
No
LED indicators
Link
Product colour
Black
Compliance industry standards
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP
Power
Power consumption (max)
1.7 W
External power adapter
Yes
Weight & dimensions
Width
94.5 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging data
Package width
204 mm
Package depth
165 mm
Package height
65 mm
Package weight
420 g
Certificates
Certification
FCC, CE
Logistics data
Harmonized System (HS) code
85176990
Other features
Dimensions (WxDxH)
94.5 x 73 x 27 mm
I/O ports
1x 1000M SC 1x 1000M RJ45
Full duplex
Yes
