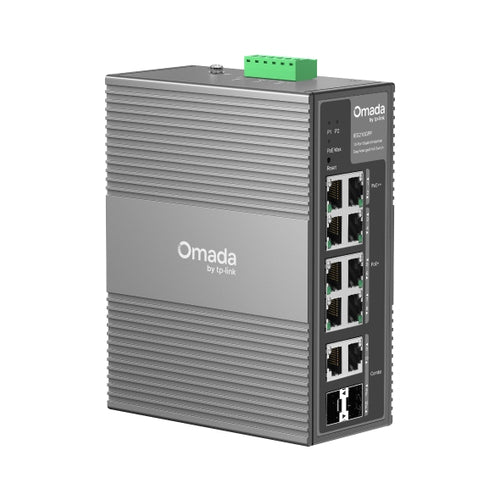

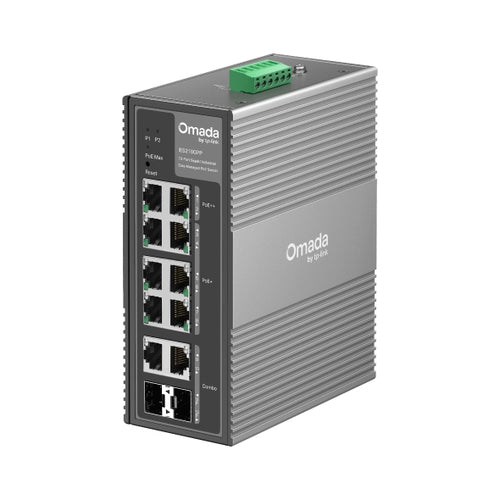

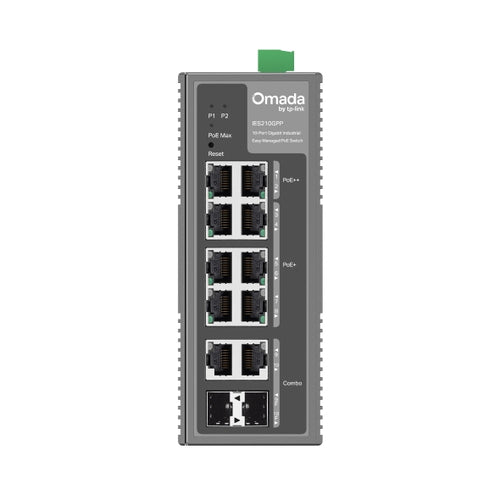

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

SKU#: IES210GPP  | UPC#: 0840460600958

$429.99
$429.99 $0.00
Sale Sold out
Shipping calculated at checkout.
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

Omada Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++ - 10 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch

Industrial-Grade Protection Built for Harsh Environments

- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting

TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Network
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support
No
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-negotiation
Yes
VLAN support
Yes
Number of VLANs
4000
Data transmission
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
4000 MB
Security
DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Multicast features
Multicast support
Yes
Design
Rack mounting
Yes
Form factor
DIN rail
Product colour
Grey
LED indicators
Yes
Power
Power source
DC
DC input voltage
12 - 57 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
6
Power over Ethernet 4PPoE (PoE++) ports quantity
2
Total Power over Ethernet (PoE) budget
240 W
Weight & dimensions
Width
155 mm
Depth
120 mm
Height
60 mm
