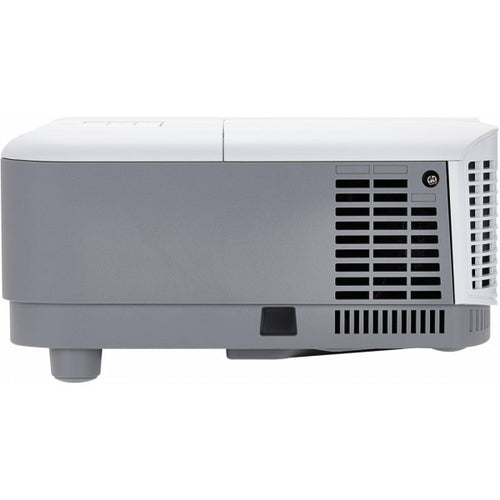

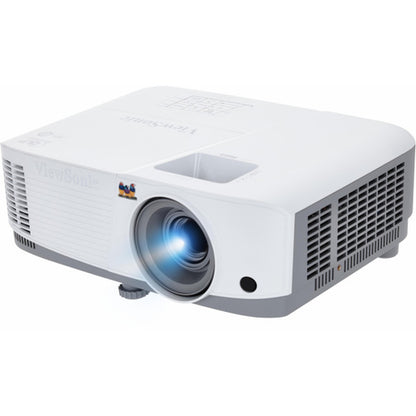

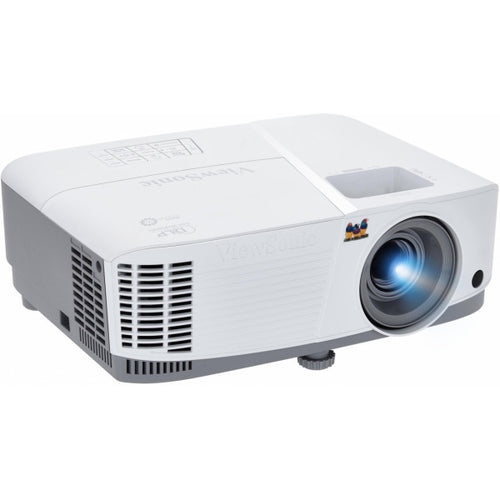

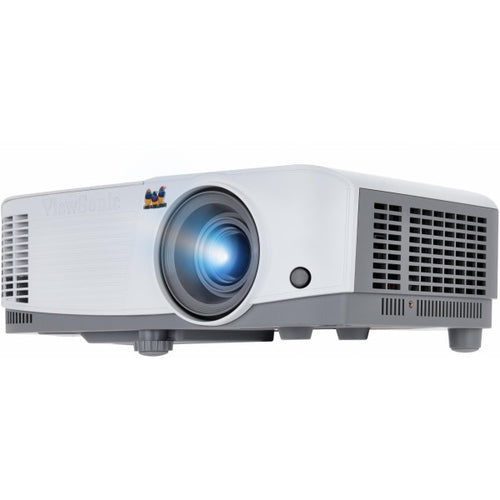

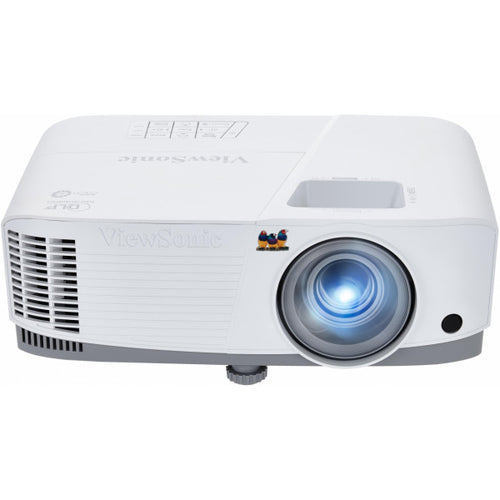

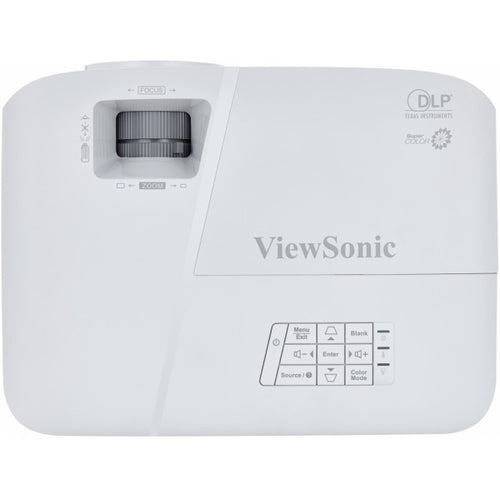

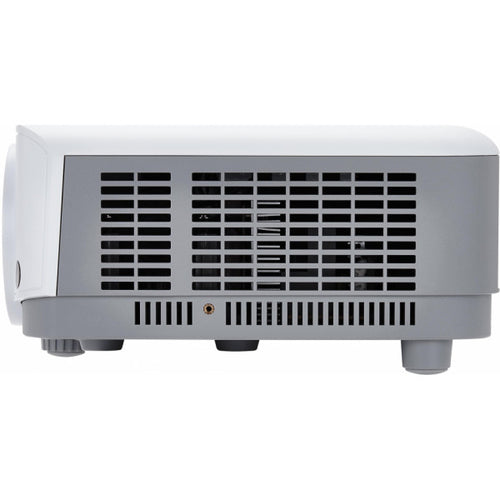

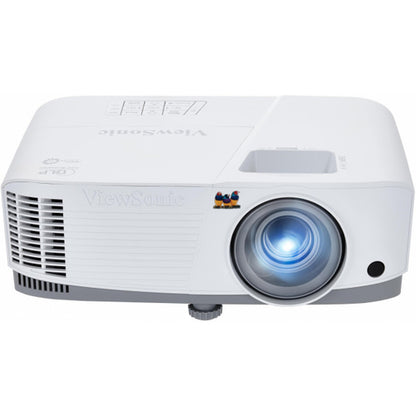

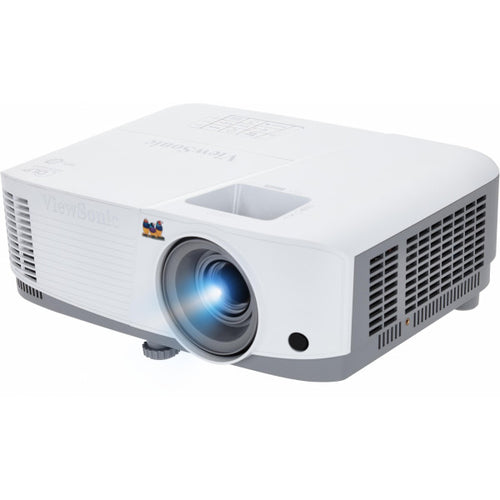

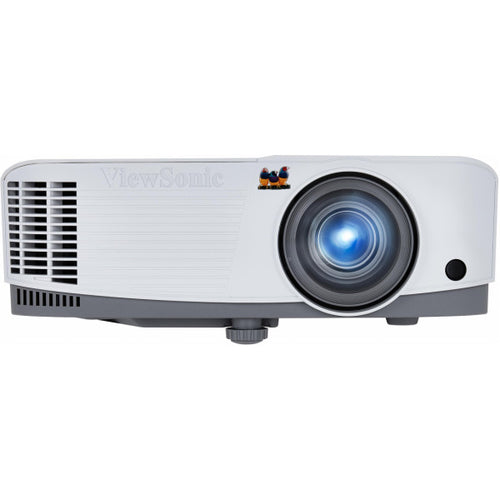

Viewsonic - Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White

SKU#: PA503W  | UPC#: 0766907904918

$922.02
$922.02 $0.00
Sale Sold out
Shipping calculated at checkout.
Only 7 units left
Secure checkout with
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Visa

View Product Details
  • Overview
  • About This Product

ViewSonic PA503W 3D Ready DLP Projector - 16:10 - Portable - 1280 x 800 - Front, Ceiling - 5000 Hour Normal Mode - 10000 Hour Economy Mode - WXGA - 22,000:1 - 4000 lm - HDMI - USB - 3 Year Warranty

Description

The ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
Projector
Screen size compatibility
762 - 7620 mm (30 - 300")
Projection distance
1 - 10.98 m
Projector brightness
3800 ANSI lumens
Projection technology
DMD
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
22000:1
Number of colours
1.07 billion colours
Horizontal scan range
15 - 102 kHz
Vertical scan range
23 - 120 Hz
Keystone correction, vertical
-40 - 40°
Matrix size
1.65 cm (0.65")

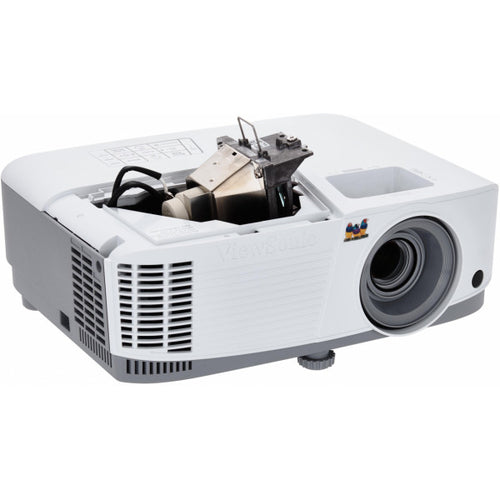

Light source
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
15000 h
Lamp power
200 W
Lamps quantity
1 lamp(s)
Lens system
Focus
Manual
Focal length range
22 - 24.1 mm
Aperture range (F-F)
2.56 - 2.68
Zoom capability
Yes
Zoom ratio
2.0:1
Throw ratio
1.55-1.7
Offset
100%
Video
Analog signal format system
NTSC, PAL, SECAM
Supported graphics resolutions
640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

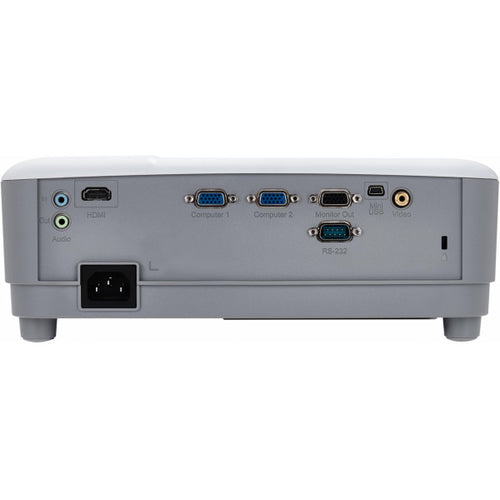

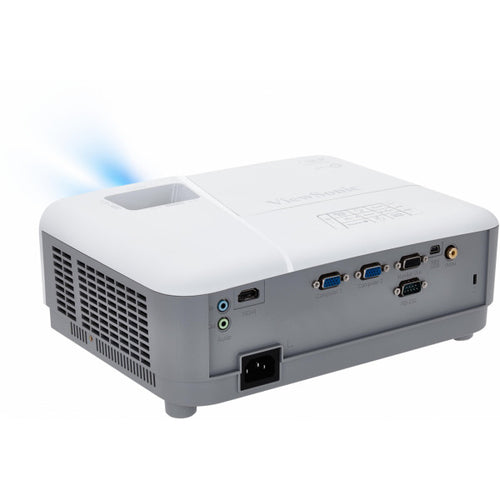

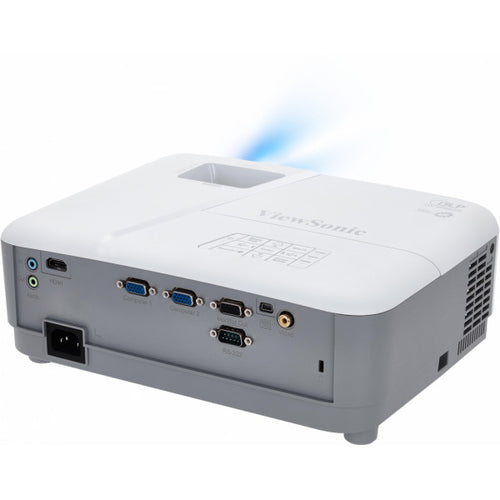

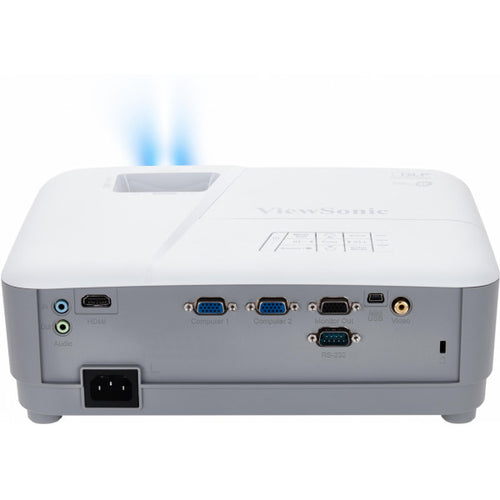

Ports & interfaces
HDMI connector type
Full-size
HDMI version
1.4
Mini-USB 2.0 ports quantity
1
Serial interface type
RS-232
PC Audio in
Yes
PC Audio out
Yes
VGA (D-Sub) ports quantity
3
HDMI ports quantity
1
Composite video in
1
DVI port
No
Mobile High-Definition Link (MHL)
No
AC (power) in
Yes
Network
Smart TV
No
Ethernet LAN
No
Wi-Fi
No
Storage
Card reader integrated
No
Features
Interactive
No
Noise level (economic mode)
27 dB
HDCP
Yes
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages
22
Noise level
31 dB
Multimedia
Built-in speaker(s)
Yes
RMS rated power
2 W
Design
Market positioning
Presentation
Product type
Standard throw projector
Product colour
White
Placement
Desktop, Ceiling
Display
Built-in display
No
Power
Power source
AC
Power consumption (typical)
260 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Weight & dimensions
Width
294 mm
Depth
218 mm
Height
110 mm
Weight
2.22 kg
Package width
365 mm
Package depth
300 mm
Package height
188 mm
Package weight
3.24 kg
Packaging content
Remote control included
Yes
Cables included
AC, VGA
Manual
Yes
Logistics data
Pallet gross length
74 cm
Pallet gross width
90 cm
Pallet gross height
2.21 m
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
8528620000
